SMSL DL300

AK4499EX + AK4191 MQA

DAC and Headphone Amplifier

--

Descriptions:

> Support MQA decoding, support MQA-CD;

> New 3rd generation XMOS XU-316, PCM support up to 32bit/768kHz, DSD support to DSD512;

> Flagship DAC chip AK4191+AK4499EX, distortion as low as 0.00006% (-124dB)

> Used 5 high-end dual op-amps and a large number of audiophile components;

> USB, optical, coaxial, I2S support DSD transmission, coaxial and optical support DOP64;

> Support DOP independent display function, accurate judgment of the current decoding format.

> Use tempered glass to fully fit the color IPS display;

> Built-in low-noise power processing, while improving power efficiency, lower power consumption;

> Combined with multiple low-noise regulated power supplies, it provides a stable, reliable, efficient, and low noise power supply system.

> Qualcomm high-end Bluetooth chip, support LDAC (24bit/96kHz), APTX/HD, SBC, AAC;

> High quality all-aluminum alloy shell, support high quality gold plated input and output connection terminals;

> Japan Audio Association (JAS) Hi-Res certification;

> Equipped with remote control and full-featured remote control.

--

Specifications:

> Input: USB/Optical/Coaxial/Bluetooth/I2S

> Output: RCA/XLR/balanced headphone

> THD+N: 0.00006%(-124dB)(UN-WTD)

> HPA THD+N: 0.0001%(-120dB)(UN-WTD)

> Line output amplitude: XLR 5Vrms, RCA 2.5Vrms

> Headphome output power: 2Wx2(16Ω) / 1Wx2(32Ω)

> Output Impedance: XLR 200Ω, RCA 100Ω, HPA near 0Ω

> HPA gain control: low 0dB, high +7dB

> Dynamic range: XLR 132dB, RCA 127dB, HPA 126dB

> SNR: XLR 132dB, RCA 127dB, HPA 126dB

> USB transmission: Asynchronization

> USB compatibility: Windows 7 / 8 / 8.1 / 10 / 11(Needs Driver), Mac OSX10.6 or Later、Linux(Driverless)

> MQA decoder: USB/Optical/Coaxial

> Sampling rate & Bit Width: USB PCM 44.1~768kHz(32bit), 2.8224~22.5792MHz(1bit), DoP DoP256, Optical / Coaxial 44.1~192kHz(24bit), DoP DoP64

> Bluetooth specification: 5.1(Support SBC,AAC,aptX,aptX HD,LDAC)

> Power Consumption: <20W

> Standby power: <0.5W

> Size: 222x39x207mm(WxHxD)

> Weight: 1.54kg/3.40lbs

--

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

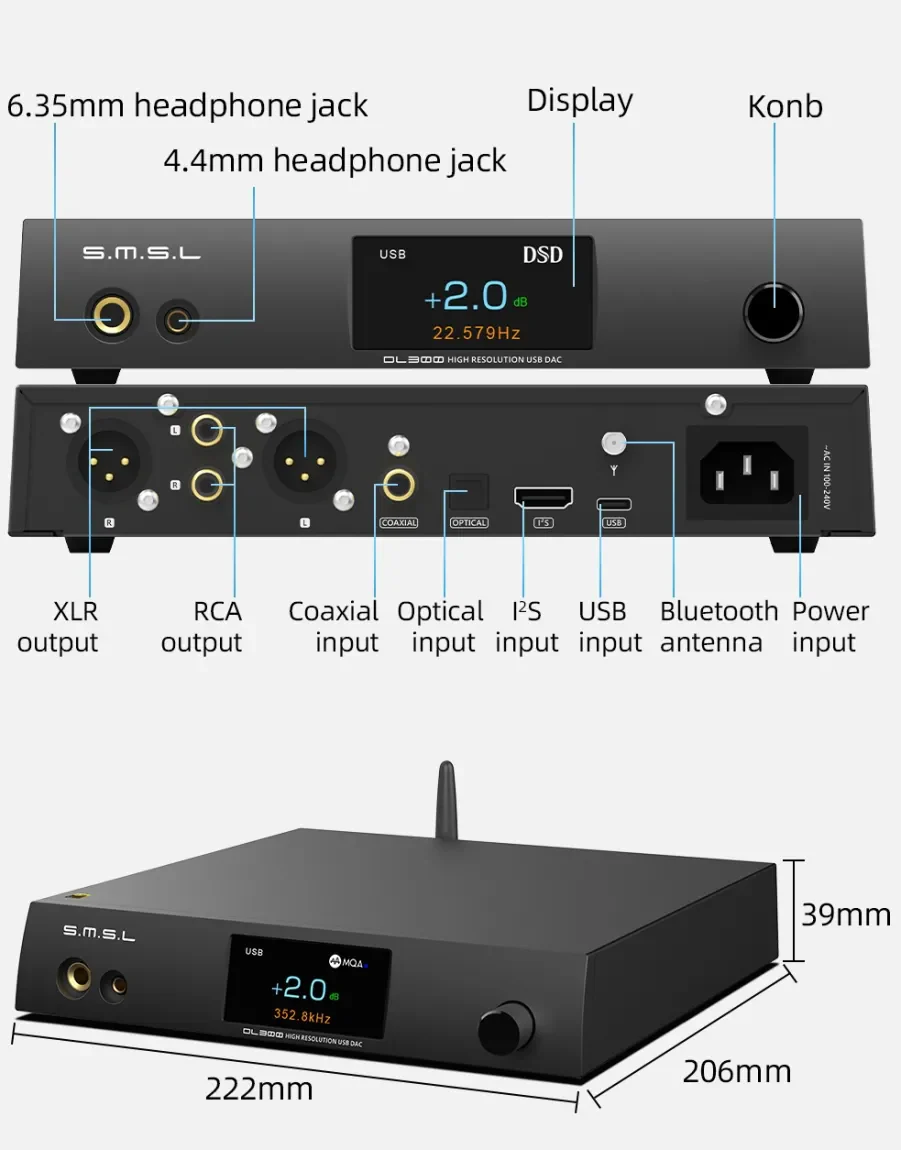

[🎶SG] SMSL DL300 - AK4499EX + AK4191 MQA AKM DAC and Headphone Amplifier - Image 16
