SMSL SHX (SH-X) Headphone Amplifier

> JAS Hi-RES
> Low-noise Op-amplifier in parallel design
> High-power Output
> SNR up to 137dB
> THD < 0.00005% -126dB (A-wt)
> Eighty high-power op-amps
> Three gains switchable
> Fully-fitted color IPS display screen
> Two kinds of output

--
Descriptions:

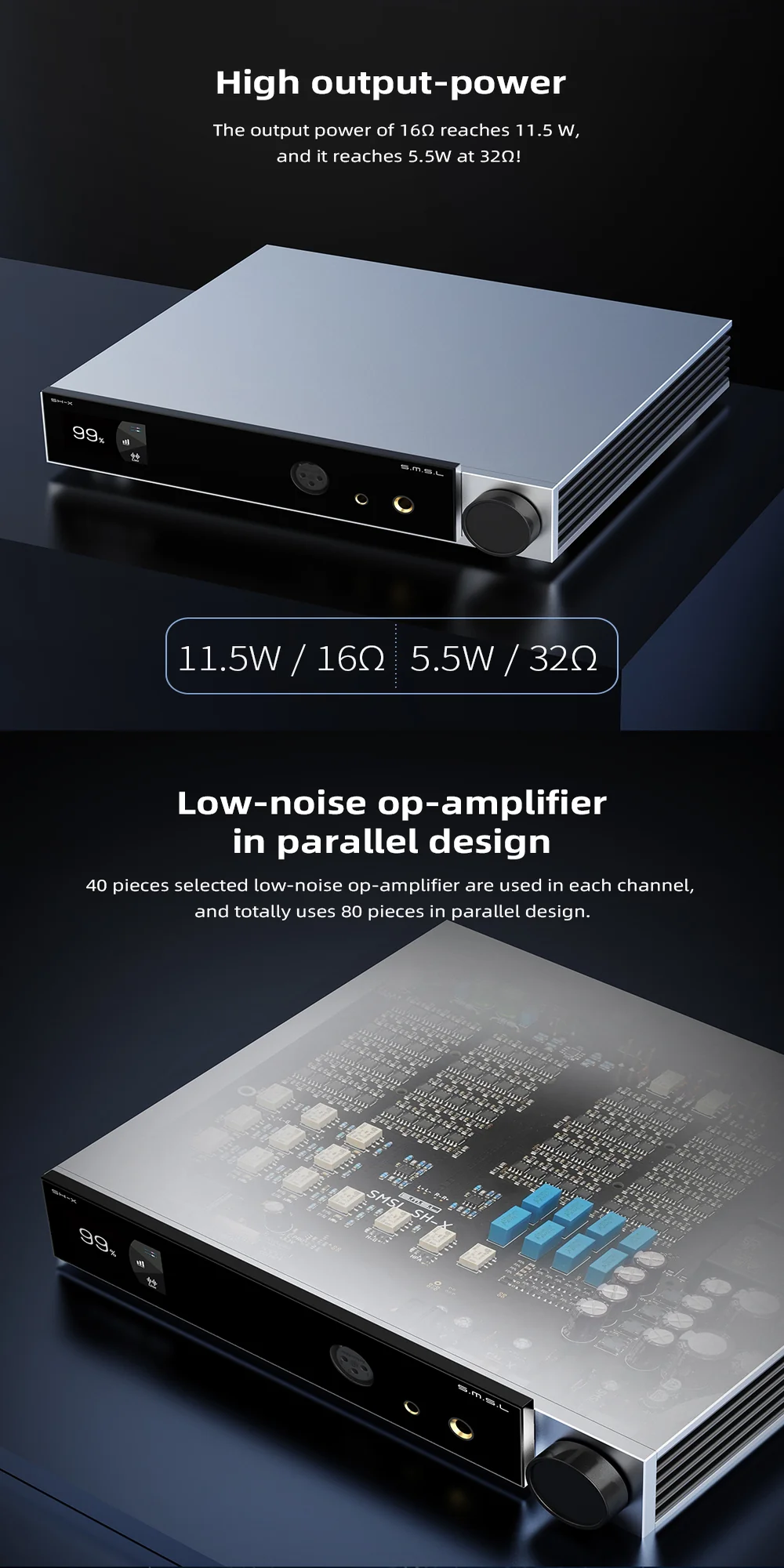

> High output-power
> The output power of 16Ω reaches 11.5W, and it reaches 5.5W at 32Ω.

> Low-noise op-amplifier in parallel design
> 40 pieces selected low-noise op-amplifier are used in each channel and totally uses 80 pieces in parallel design.

> Switchable Three Gains

> Preamplifier output
> It can be used as High-End preamplifier

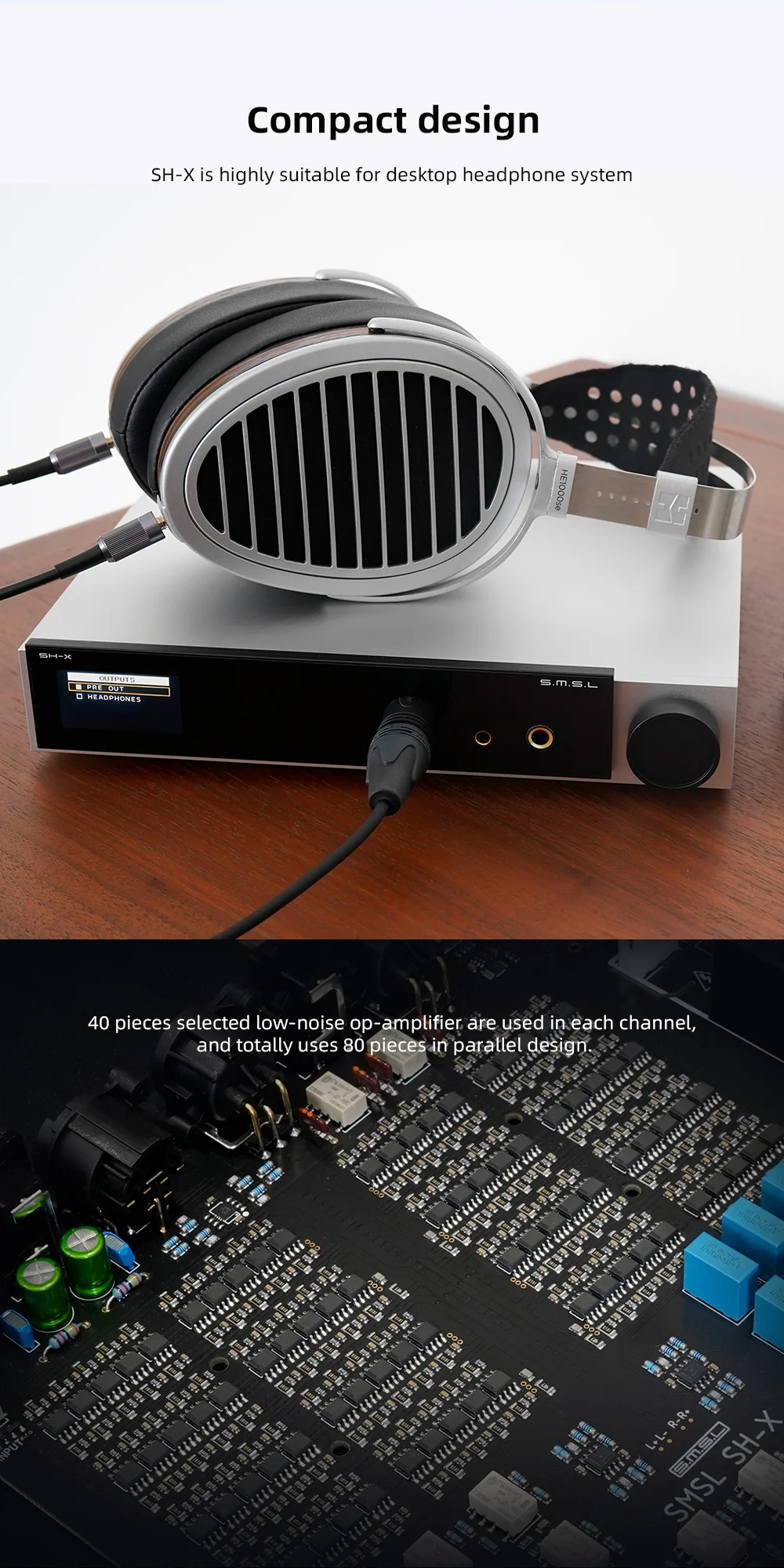

> Compact design
> SH-X is highly suitable for desktop headphone system

> 40 pieces selected low-noise op-amplifier are used in each channel, and totally uses 80 pieces in parallel design.

> High-precision low-temperature dift resistance, keeping the stable high-performance
> High-quality relay and non-impact sound design

>Built-in power supply system with high efficiency and low noise


--
Specifications:

> Input: Balanced / Unbalanced
> Headphone Outputs: 4.4mm / XLR Balanced / 6.35m
> Pre-ouputs: Balanced / Unbalanced
> Output Power: 16Ω --- 11.5W * 2 / 32Ω --- 5.5W * 2 / 300Ω --- 600mW * 2 / 600Ω --- 300mW * 2
> SNR: 137dB
> Dynamic Range: 137dB
> THD+N: -123dB , 0.00006% ( 1kHz , 32Ω )
> Input Impedance: 34kΩ
> AMP output Impedance: Near 0Ω
> Pre-ouput Impedance: Balanced 66Ω / Unbalanced 33Ω
> Frequency Response: 20Hz - 100kHz (-0.5dB)
> Gain: Balanced --- Low (-2dB), Middle (6dB), High (23dB) / Unbalanced --- Low (-8dB), Middle (0dB), High (17dB)
> Power consumption (EN60065): ＜50W
> Power Standby: ＜0.5W
> Size: 250 * 51 * 192 ( W * H * D )
> Weight: 2.42kg / 5.33lbs

--
