TOPPING E30 II Lite
> Utilizes AKM's VELVET Sound technology's sub-flagship AK4493S chip
> Supports high-resolution audio streams up to DSD512 and PCM768kHz
> Equipped with the XMOS XU208 processor for enhanced performance
> Jitter as low as -153dB for improved sound quality
> Coaxial and optical inputs supporting up to 24bit/192kHz
> Flexible power supply options for ease of use
> Integrated with Discrete LNRD circuit for stable and low-noise power supply
> Offers multiple filter modes for PCM and DSD decoding
> Auto On/Off function for user convenience
> Preamp mode for easy volume control

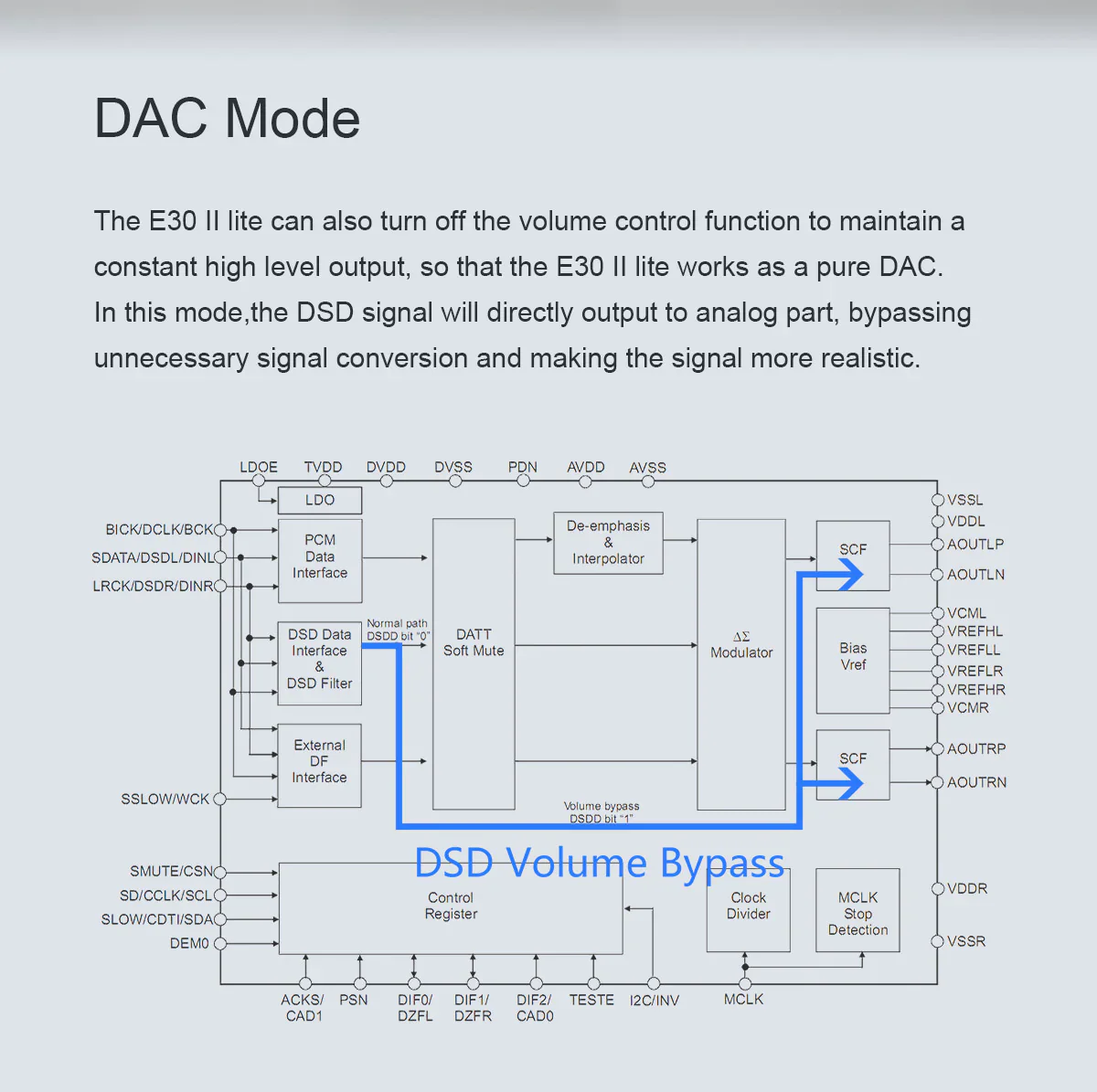

> DAC mode for pure DAC output

--
Descriptions:

> Power-packed and Versatile
> Setting a new benchmark in digital-to-analog conversion, the TOPPING E30 II Lite DAC introduces a myriad of advanced features, leveraging top-tier components such as the AK4493S chip, XMOS XU208 processor, and versatile connectivity options. This DAC lives up to the expectations of discerning audiophiles with its ability to handle high-resolution audio and flexible functionalities.

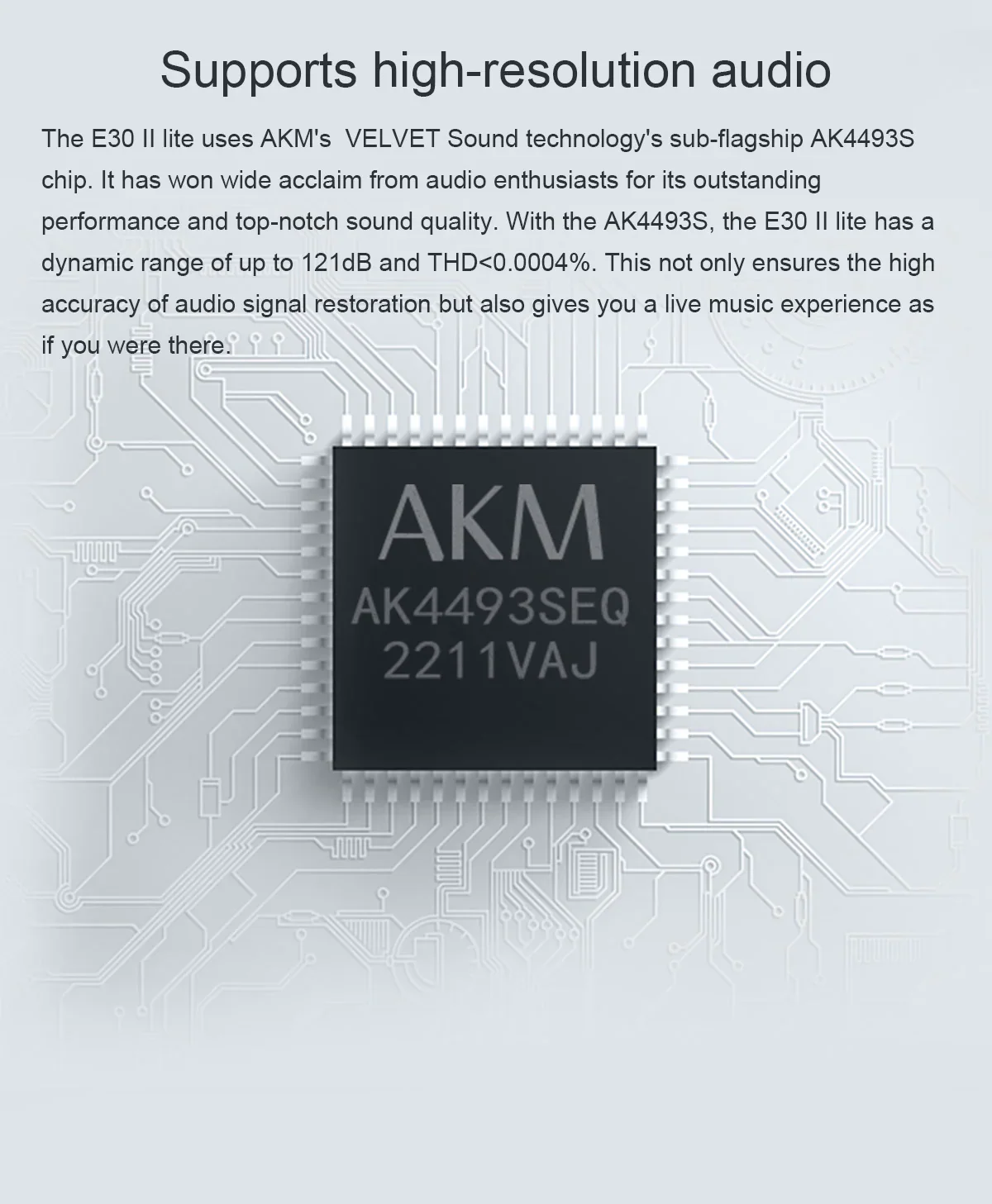

> High-resolution Audio with AK4493S
> The E30 II Lite is the embodiment of high-fidelity audio, employing AKM's VELVET Sound technology via the acclaimed AK4493S chip. With a dynamic range reaching up to 121dB and an impressively low THD of less than 0.0004%, this DAC ensures a high level of audio signal accuracy and a captivating live music experience.

> Seamless Playback with XMOS XU208
> Sporting the powerful XMOS second-generation processor, the E30 II Lite can support playback of audio streams up to DSD512 and PCM768kHz, making it compatible with a wide variety of operating systems including Windows 10, Windows 11, MAC, Linux, and iOS/Android systems. This DAC provides an optimal HiFi music source for your PC, without the worry of jitter affecting sound quality.

> Connectivity and Power Flexibility

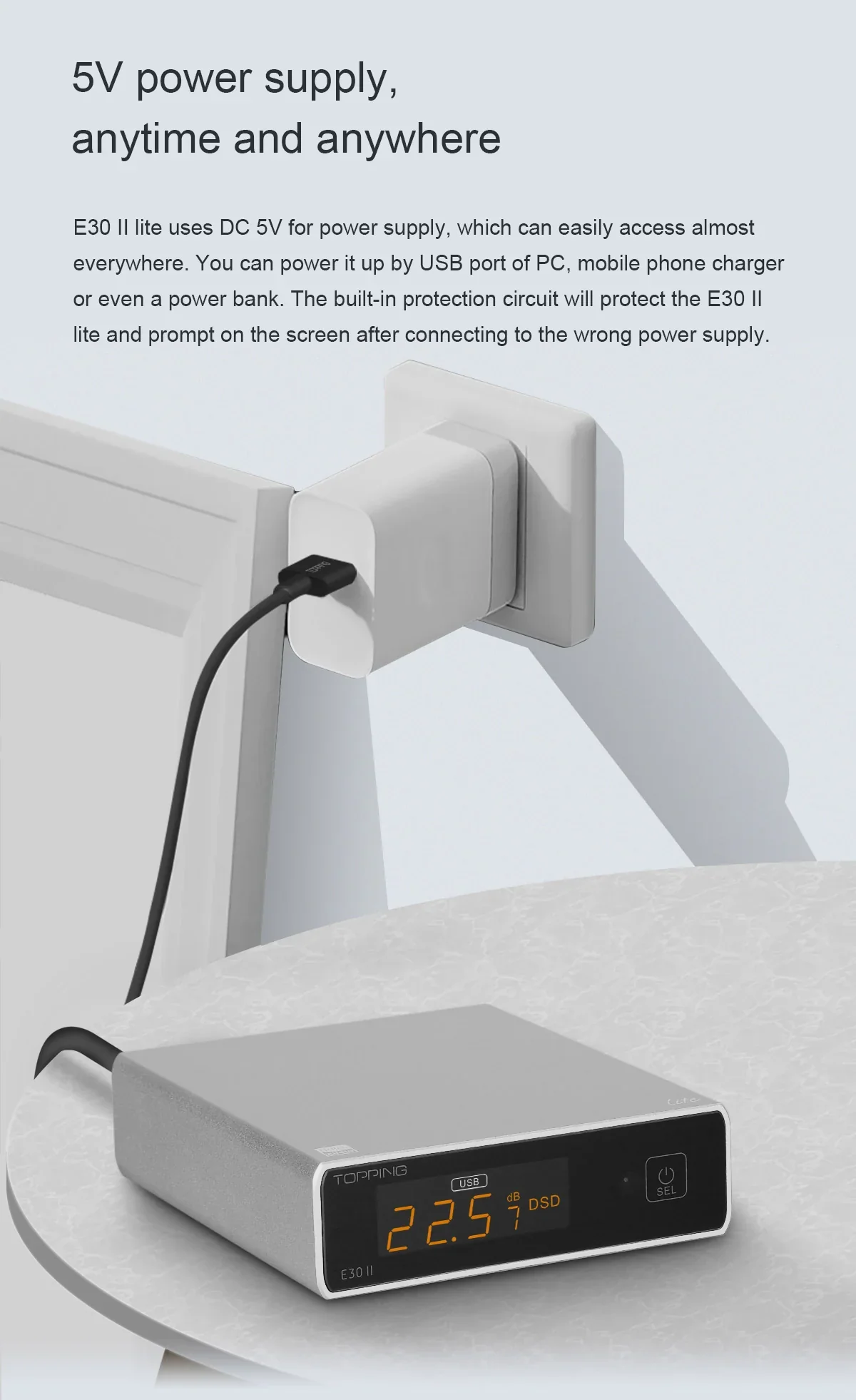

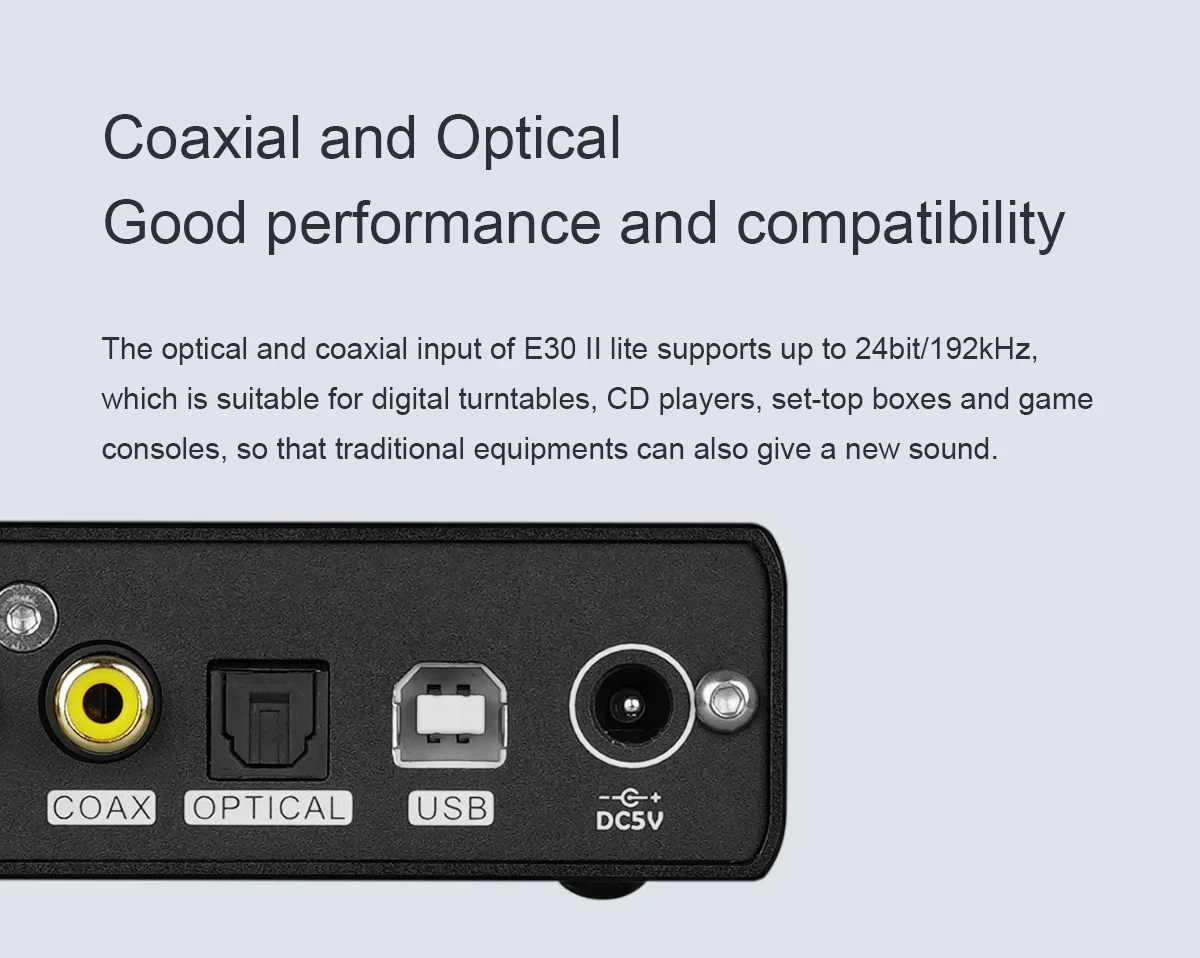

> From traditional digital turntables, CD players, to set-top boxes and game consoles, the E30 II Lite has you covered. Its optical and coaxial inputs support up to 24bit/192kHz, revitalizing your traditional audio equipment with new sound. Powered by DC 5V, it can be powered up by a USB port of a PC, mobile phone charger, or even a power bank, ensuring easy access anywhere and anytime.

--
Specifications:

> Power input: DC5V/1A
> Signal input: USB/OPT/COAX
> Line out output: RCA
> Total Harmonic Distortion (THD): <0.0004%
> SNR: 121dB
> Dynamic Range: Up to 121dB
> Frequency response: 20Hz - 40kHz
> Output level: 2.1Vrms
> Noise: <1.9uVrms
> Channel crosstalk: -137dB
> Channel balance: <0.3dB
> Output impedance: 20Ω
> Supports up to DSD512 Native and PCM 32-bit/768kHz
> DAC: AK4493S
> Processor: XMOS XU208
> Power supply: DC 5V
> Weight: 0.65lbs (295g)
> Dimensions: 3.9” x 4.9” x 1.2” (10cm x 12.5cm x 3.2cm)
