[🎶SG] xDuoo MH-02 (MH02) USB DAC & Tube Headphone Amplifier

$60.90

Original: $174.00

-65%

[🎶SG] xDuoo MH-02 (MH02) USB DAC & Tube Headphone Amplifier—

$174.00

$60.90

Original: $174.00

-65%

[🎶SG] xDuoo MH-02 (MH02) USB DAC & Tube Headphone Amplifier—

$174.00

$60.90

The Story

🎵 OFFICIAL XDUOO DEALER - 1 Year Local Warranty & Aftersales Support

📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084

📧 Email us @ sales@samaudiosg.com

🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729) - Demo units available

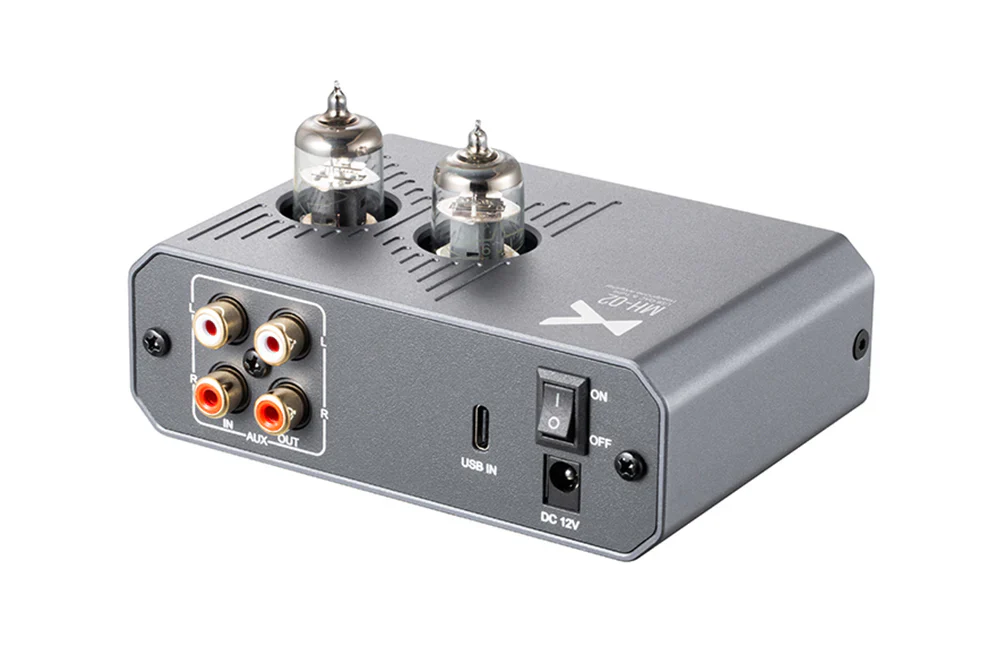

xDuoo MH-02 USB DAC & Tube Headphone Amplifier

> USB DAC support up to PCM 32-bit/384kHz and DSD256

> Hybrid amplification with double 6J1 tubes and Class-A transistor buffer

> Strong output power (1300mW) for a wide range of headphones

> Gain switch for high and low gain settings

> Line out for use as a pre-amplifier

> High-grade Japanese ELNA and Rubycon capacitors

> Built-in protection circuit to avoid POP noise

> Sleek, sandblasted textured shell

Descriptions:

Meet the xDuoo MH-02. This DAC/Amp merges old-school tube charm with modern digital muscle, giving you the best of both worlds. With the soulful warmth of tube amplification and the crisp, detailed transients of a Class-A transistor buffer, this hybrid amp delivers music the way it’s meant to be heard—warm, rich mids combined with treble that sparkles with detail.

Plug in the MH-02 and get ready for an earful (in a good way). This little dude decodes high-res audio up to PCM 32-bit/384kHz, DSD256, and MQA 32-bit/384kHz from any device you’ve got lying around. Thanks to the CS43131 DAC chip, you get crystal-clear decoding.

All hail the hybrid amp. The MH-02’s double 6J1 tubes give you that smooth, warm sound that makes everything feel like a lazy Sunday morning. The transistors, on the other hand, bring the muscle, with a Class-A buffer that delivers both low-end oomph and high-end sparkle. It’s like putting a rocket engine in your grandma’s Buick.

With 1300mW of output power, the MH-02 isn’t messing around. High-impedance, low-impedance—doesn’t matter. This thing can drive whatever headphone you’ve got.

Got finicky headphones? No worries. The MH-02 has a gain switch that lets you tweak the output to match your headphones’ impedance. High gain, low gain—just flip the switch and you’re set.

Need a pre-amp for your gear? The MH-02 has a line out that runs through the tube stage and is controlled by the volume knob. Hook it up to your amps or active speakers and hear your sound quality jump up a notch.

No one enjoys a loud POP when they turn on their gear. The MH-02’s built-in relay mute circuit ensures you won’t have to deal with that nonsense. It keeps your tubes happy and your ears unscathed. Easy, breezy, and totally hassle-free.

Wrapped in a sleek, sandblasted, textured shell, the MH-02 isn't just about great sound—it looks fantastic too. Simple, clean, and ready to blend into any setup without shouting for attention.

Specifications:

Power supply: DC12V/2A

Sampling rate support: PCM 32-bit/384kHz, DSD256

Headphone outputs: 6.35mm, 3.5mm, 4.4mm balanced

Output power: 1300mW @ 32Ω

Frequency response: 10Hz-60kHz

Gain: +12/18dB

THD+N: ≤0.8% (1kHz, 32Ω load)

SNR: 118dB

Crosstalk: ≥70dB

Size: 4.7 x 3.1 x 1.6 inches (12 x 7.8 x 4 cm)

Weight: 0.77 lbs (0.35 kg)
