XDUOO XD05 BAL2 Portable DAC & Headphone Amplifier

--
Descriptions:

--
XDUOO XD-05 Bal 2

Dual ES9038Q2M DAC Chipset
High-Performance XMOS XU316
Qualcomm QCC5125 Bluetooth Chip (LDAC, aptX HD, aptX LL)
Two-level Gain switch (+6dB/+15dB).
AES/Coax/Optical/Aux/USB Input
6.35mm Single-ended headphone output.
4.4mm Balanced headphone output.

--
Features

> Powerful Dual DAC Chipset
xDuoo has equipped the XD-05 Balanced with a premium Dual DAC chipset featuring 2xES9038Q2M DAC chips. It provides outstanding hi-res audio signal decoding with super-clean background and ultra-low distortion. The DAC chip is paired with a premium XMOS XU316 USB signal receiver chip providing hi-res signal decoding up to 32-Bit/768kHz and DSD512 natively.

> Seamless Wireless Connectivity
Featuring the flagship QCC5125 Bluetooth signal chip from Qualcomm, the xDuoo XD-05 Balanced provides a seamless wireless Bluetooth connectivity with hi-res codecs support such as LDAC, AptX HD, AptX LL, AptX, and many more.

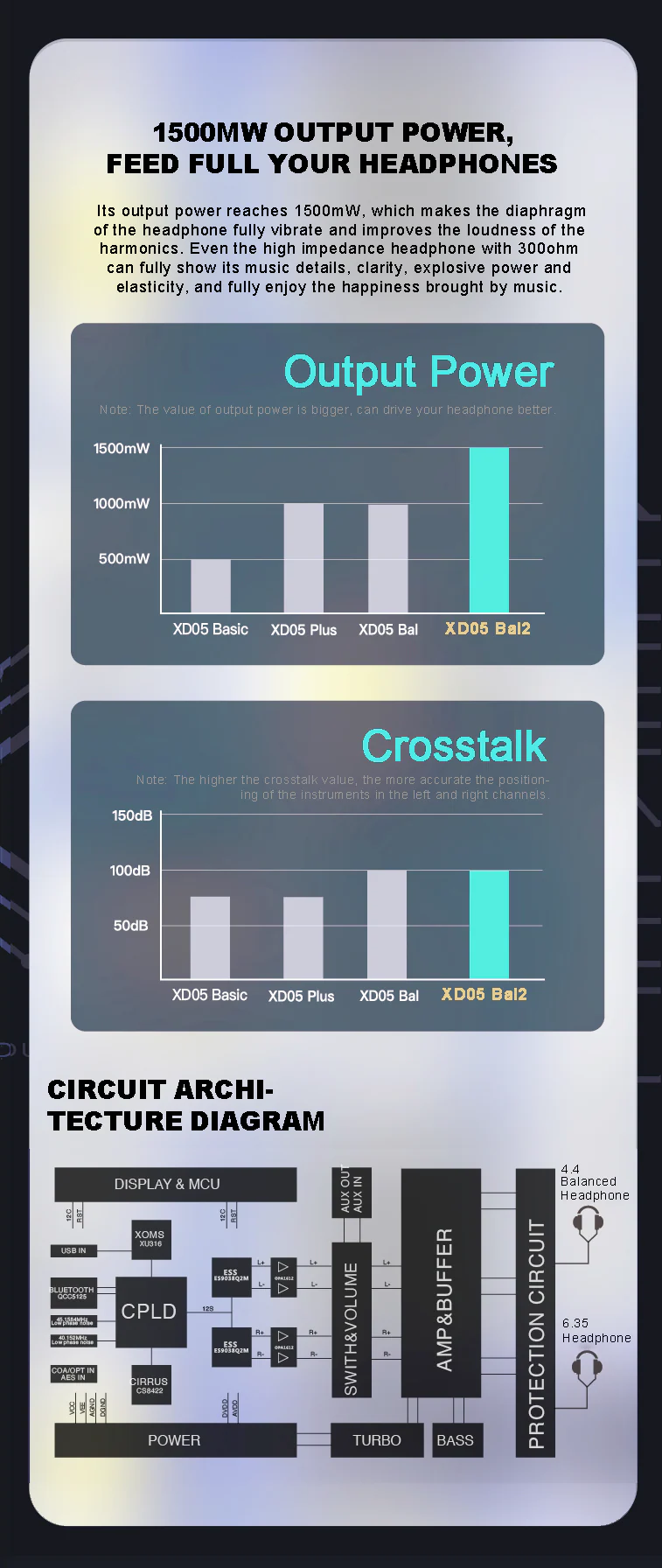

> Powerful Balanced Output
xDuoo XD05 Bal as the name suggests features a fully balanced 4.4mm headphone output port. The device is equipped with a premium amplifier circuit providing a whooping 1500mW power at 32Ω of load. This much power is more than enough to power your power-hungry headphones and makes them shine with all their glory. With the balanced headphone output, the S/N and dynamics are greatly improved. Along with this balanced headphone out port, the XD-05 Bal also features a single-ended 6.35mm headphone output.

--
Specifications:

Battery: 3.8V/5000mAh
Bluetooth Formats: AAC、SBC、aptX、aptX LL、aptX HD、LDAC
Gain: +6/15dB

6.35 phone output parameters:
Output power: 1500mW (32Ω load)

4.4 phone output parameters:
Output power: 1500mW (32Ω load)

AUX OUT parameters:
Output level: 2.0Vrms

Battery Life: USB IN ≥9H |SPDIF IN≥15H | AUX IN≥24H
Charging time: ≤3 hours (fast charging) | ≤6 hours (slow charging)
