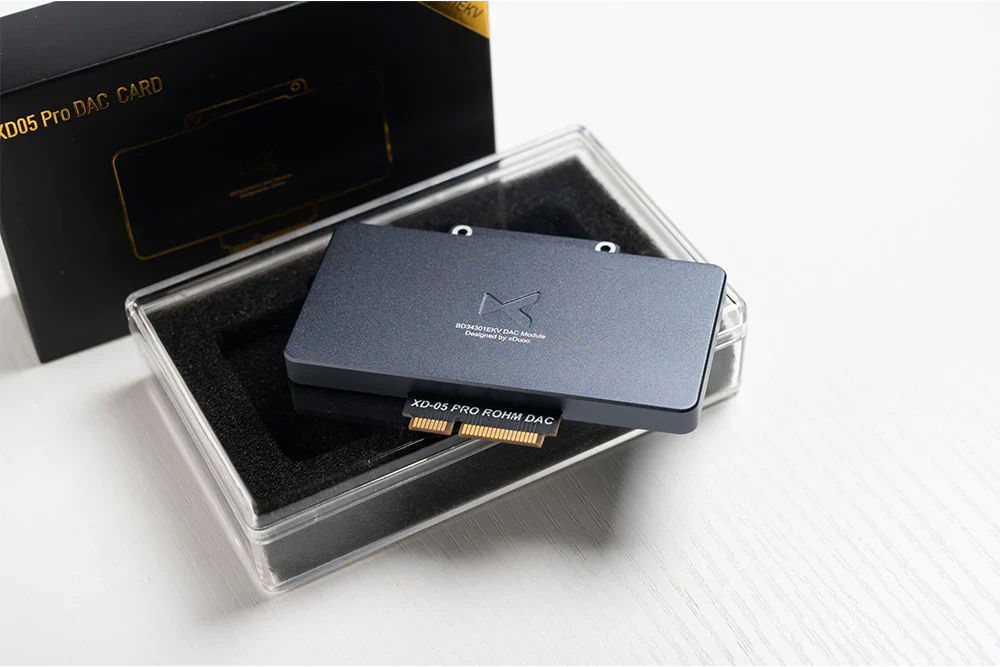

XDUOO XD05 Pro ROHM BD34301 DAC Card Module
Elevated Audio Experience with ROHM's BD34301EKV

--
Descriptions:

Elevated Audio Experience with ROHM's BD34301EKV
Designed with a focus on vocal performance, especially in pop genres, the BD34301EKV DAC card optimizes mid-frequencies, making your music vibrant and vocals emotionally resonant.

--
Specifications:

> Compatible Operating Systems: Windows, Linux, Mac OS, iOS, Android
> Battery: 3.87V/13600mAh
> Battery Life: USB IN: >11 Hours | SPDIF IN: >11 Hours | AUX IN: >20 Hours (ECO Mode)
> Charging Time: <6 hours (fast charging), <10 hours (slow charging)
> Size: 18.5 x 9.5 x 3.3 cm
> Weight: 0.78 kg

> Unbalanced Output Parameters
> Output Power:2000mW (32ohm, THD+N<1%)240mW (300ohm, THD+N<1%)
> Output Impedance: <0.2 ohm
> Peak Voltage: 23.8 Vp-p (Turbo)
> Frequency Response: 20Hz ~ 20KHz (±0.5dB)
> Crosstalk: ≥75dB
> THD+N: 0.0008%
> S/N: ≥117dB

> Balanced Output Parameters
> Output Power:2000mW (32ohm, THD+N<1%)930mW (300ohm, THD+N<1%)
> Output Impedance: <0.4 ohm
> Peak Voltage: 47.2 Vp-p (Turbo)
> Frequency Response: 20Hz ~ 60KHz (±0.5dB)
> Crosstalk: >105dB
> THD+N: 0.0007%
> S/N: ≥119dB

> AUX Out Parameters
> Output Level: 2.0V
> THD+N: 0.0007%
> S/N: ≥117dB
> Crosstalk: ≥96dB

> BAL-LO Parameters
> Output Level: 4.0V
> THD+N: 0.0005%
> S/N: ≥128dB
> Crosstalk: ≥100dB
