XDUOO XD05 Pro WM8741

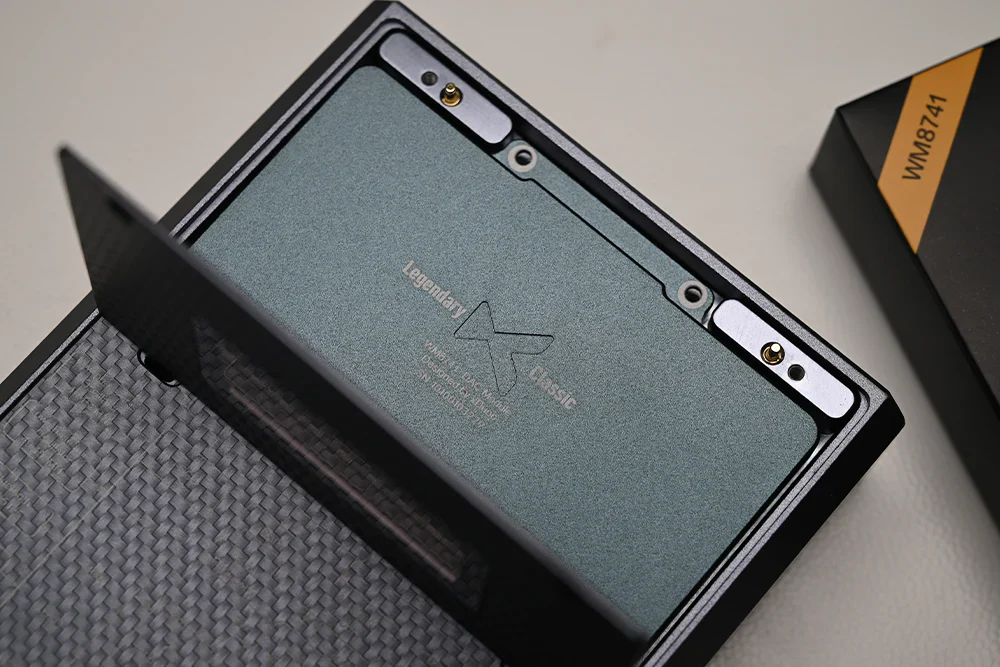

> DAC Card module for XD05 Pro

*Note: To use this DAC module, your XD05 PRO must be updated to the latest firmware
--
Descriptions:

> Sound Type Of DAC Card

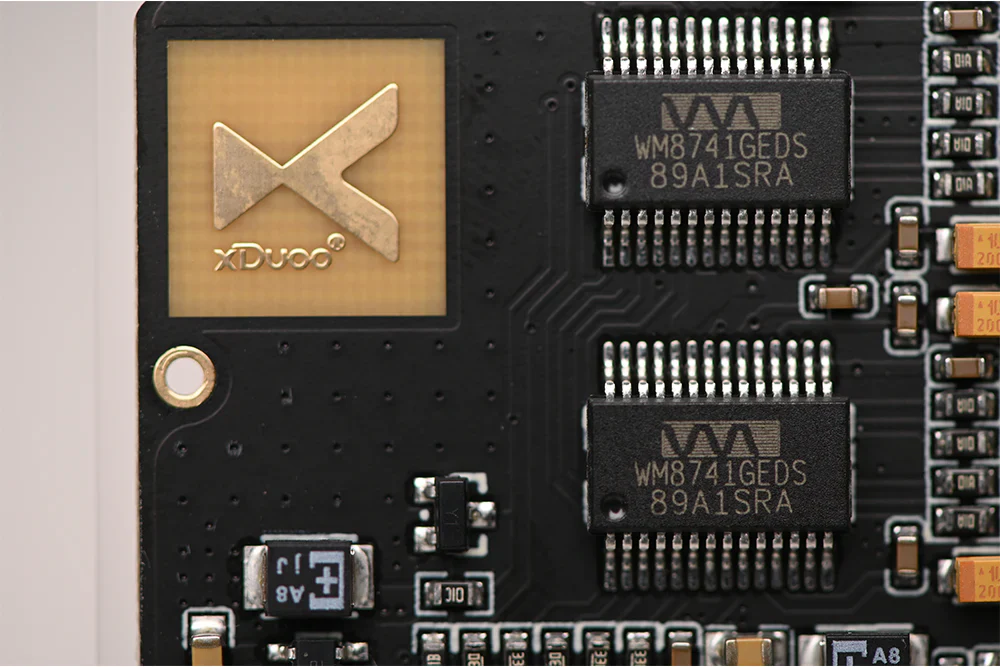

> In the Impression of long-time users, the DAC chip WM8741 is characterized by "rich and natural sound".
> When playing classic old songs and jazz, it delivers a very balanced and rich sound, with a subtle touble of the tube-sound style.

--
Specifications:

Support Sampling Rate:
> USB: 16-32bit / 44.4kHz-192kHz
> SPDIF: 16-32bit /  44.4kHz-192kHz
> BT: 16-32bit / 44.4kHz-96kHz

Unbalanced Output Parameters
> Output Power: 2000mW (32Ω, THD+N <1%), 240mW (300Ω, THD+N <1%)
> Output Impedance: 0.2Ω
> Peak Voltage: 23.8VP-P (TURBO)
> Frequency Resposne: 20Hz - 20kHz (±0.5dB)
> Crosstalk: >75dB
> THD+N: 0.004% (-87dB)
> SNR: >117dB

Balanced Output Parameters
> Output Power: 2000mW (32Ω, THD+N <1%), 930mW (300Ω, THD+N <1%)
> Output Impedance: <0.4Ω
> Peak Voltage: 31.1VP-P (TURBO)
> Frequency Response: 20Hz-60kHz (±0.5dB)
> Crosstalk: >105dB
> THd+N: 0.0007%
> SNR: >119dB

AUX OUT Parameters:
> Output Level: 2.0V
> THD+N: 0.0004% (-87dB)
> SNR: 120dB (A-wt)
> Crosstalk: -94dB (@1k), -85dB (@10k)

BAL-LO Parameters:
> Output Leve: 2.0V
> THD+N: 0.0002% (-94dB)
> SNR: 123dB (A-wt)
> Crosstalk: -105dB (@1k), -85dB (@10k)

--
